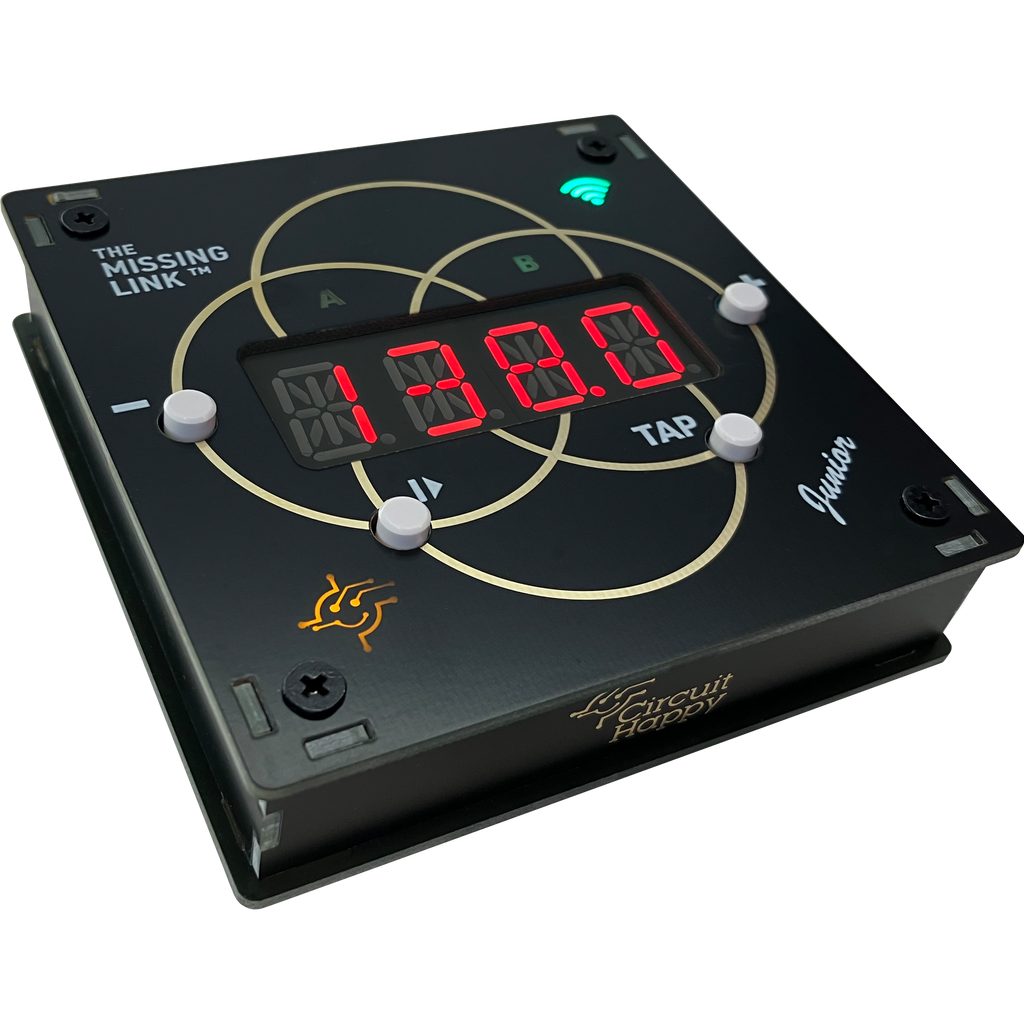

The Missing Link, Junior
Desktop CV & MIDI Clock Generator
Buy direct (Ships from the USA)
The Missing Link Junior is your modern desktop sync solution for staying in time with Ableton Live, any other DAW that support Ableton Link, iOS music apps, DJ and VJ software, and any other hardware that supports Link (such as our ML:2m).
How Does The Missing Link Junior work?

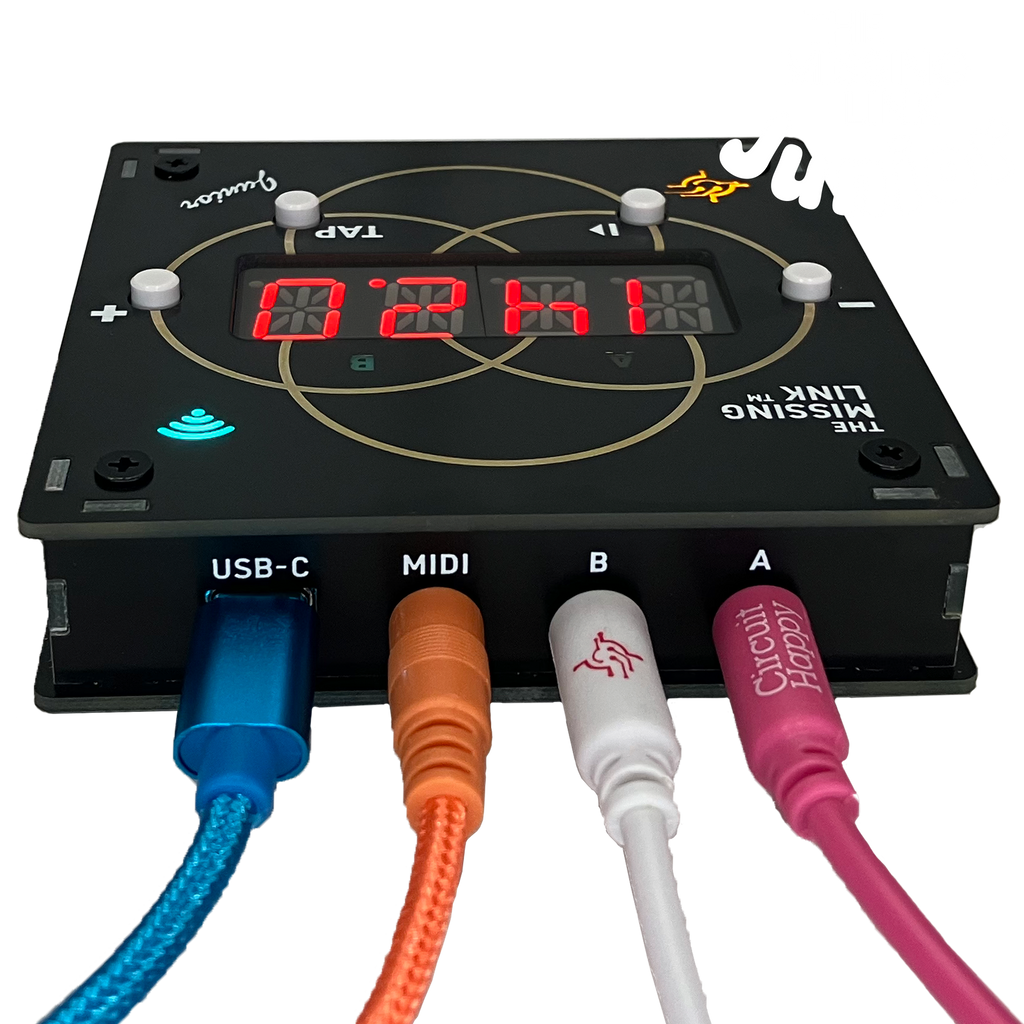

Two Configurable 5V Clock Outputs
Outputs A & B can be configured in several ways:
- Clocks at various PPQN settings
- Trigger Reset each loop or at Loop Start or Stop
- Run/Stop Gate for DIN-Sync style clock.
MIDI Out Port
Clock your favorite drum machine with the TRS-A MIDI port. TRS to DIN adapter included in the box!
2.4 GHz WiFi Connectivity
The Missing Link can join your home or studio WiFi network to jam with your other Link devices. No reliable WiFi nearby? The Missing Link is happy to be the WiFi Access Point all the Link devices connect to.
Delay Compensation
Sometimes The Missing Link is a little ahead or behind in time with respect to your other Link devices. Adjust the delay compensation to nudge Junior forward or backward in relation to your other Link devices.
Wireless Sync Across Your Studio
Don’t have any Link-compatible DAWs or apps? The Missing Link Junior also works standalone as a clock generator and can synchronize with other Missing Link devices for wireless sync across your setup. No more long cable runs to pass sync between your cases or desktop sequencers!
What’s included in the box?
- two patch cables
- 3.5 mm TRS A to 5-pin DIN MIDI cable adapter
- USB A to C cable
- USB A Power supply for your region
Technical Specifications
- Power Requirements: 5V 500 mA via USB-C. USB Power Supply and USB-A to C cable included.
- WiFi Antenna: 2.4 GHz (does not support 5 GHz networks)
- Dimensions: 83 mm x 83 mm x 21 mm
